• Auto High-Beam Headlamps
• Electronic Pwr Asst Steer
• Forward Collision Warning
• Hill Start Assist
• Lane-Keeping System
• Post-Collision Braking
• Pre-Collision Assist W/Aeb
• Rear View Camera W/ Trailer Hitch Assist
• Selectable Drive Modes
• Side-Wind Stabilization
• Suspension - Heavy Duty Front Axle

• Air Conditioning
• Assist Handles - A-Pillar
• Interior Lighting - Led
• Locking Glove Box
• Powerpoint - 12V (Front)
• Steering - Tilt/Telescopic
• Tachometer

• 3 Point Safety Belts
• Advancetrac With Rsc
• Airbags – Front, Side And Safety Canopy System
• Brakes - 4Wheel Disc W/Abs
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Heavy-Duty Trailer Tow Package

Cargo Van (101A)

Load Area Protection Package

• Heavy-Duty Trailer Tow Package
• Load Area Protection Package
• Order Code 101A
• 4 Speakers
• AM/FM radio
• AM/FM Stereo
• Air Conditioning
• 110V/400W Power Outlet
• Power steering
• Power windows
• Remote keyless entry
• Steering wheel mounted audio controls
• Traction control
• 2 Additional Keys (4 Total)
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Intelligent Access w/Push-Button Start
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag
• Internet access capable: FordPass Connect 4G
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Auto High-beam Headlights
• Delay-off headlights
• Fully automatic headlights
• Panic alarm
• Speed control
• Dual AGM Batteries (70 Amp-hr Each)
• Dual Alternators (250 Amps Each)
• Black High-Intensity Discharge (HID) Headlamps
• Front License Plate Bracket
• Power door mirrors
• Short-Arm Manual-Folding Power Adjust Mirrors
• Auxiliary Fuse Panel
• Driver door bin
• Front & Rear Vinyl Floor Covering
• Front reading lights
• Illuminated entry
• Large Center Console
• Modified Vehicle Wiring System
• Passenger-Side B-Pillar Assist Handle
• Rearview Mirror
• Reverse Sensing System
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Dark Palazzo Gray Cloth Swivel Bucket Seats
• Dark Palazzo Gray Vinyl Bucket Seats
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Vinyl Front Bucket Seats
• Midship Extended Range Fuel Tank (31 Gallons)
• Passenger door bin
• Frame Mounted Hitch Receiver
• Tow/Haul Mode w/Trailering Wiring Provisions
• Trailer Brake Controller (TBC)
• Wheels: 16" Silver Steel w/Silver Hubcaps
• Fixed Rr Cargo Door & 2nd Row Passenger-Side Glass
• Privacy Glass
• Rear-Window Defroster
• Variably intermittent wipers
• 3.73 Limited-Slip Axle Ratio

• Brakes
• Brake ABS System (Second Line): 4-Wheel
• Brake ABS System: 4-Wheel
• Brake Type: 4-Wheel Disc
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 72
• Cargo Box Width : Wheelhousings (in)
• Doors
• Side Door Type: Sliding
• Electrical
• Maximum Alternator Capacity (amps): 250
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground to Top of Load Floor (in): 28.7
• Height, Overall (in): 101.3
• Length, Overall (in): 235.5
• Overhang, Front (in): 40.3
• Wheelbase (in): 148
• Width, Max w/o mirrors (in): 81.3
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Interior Dimensions
• Front Head Room (in): 52
• Front Hip Room (in): 60.7
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Passenger Capacity: 2
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Summary
• Body Code: V
• Body Style: Medium Roof Van

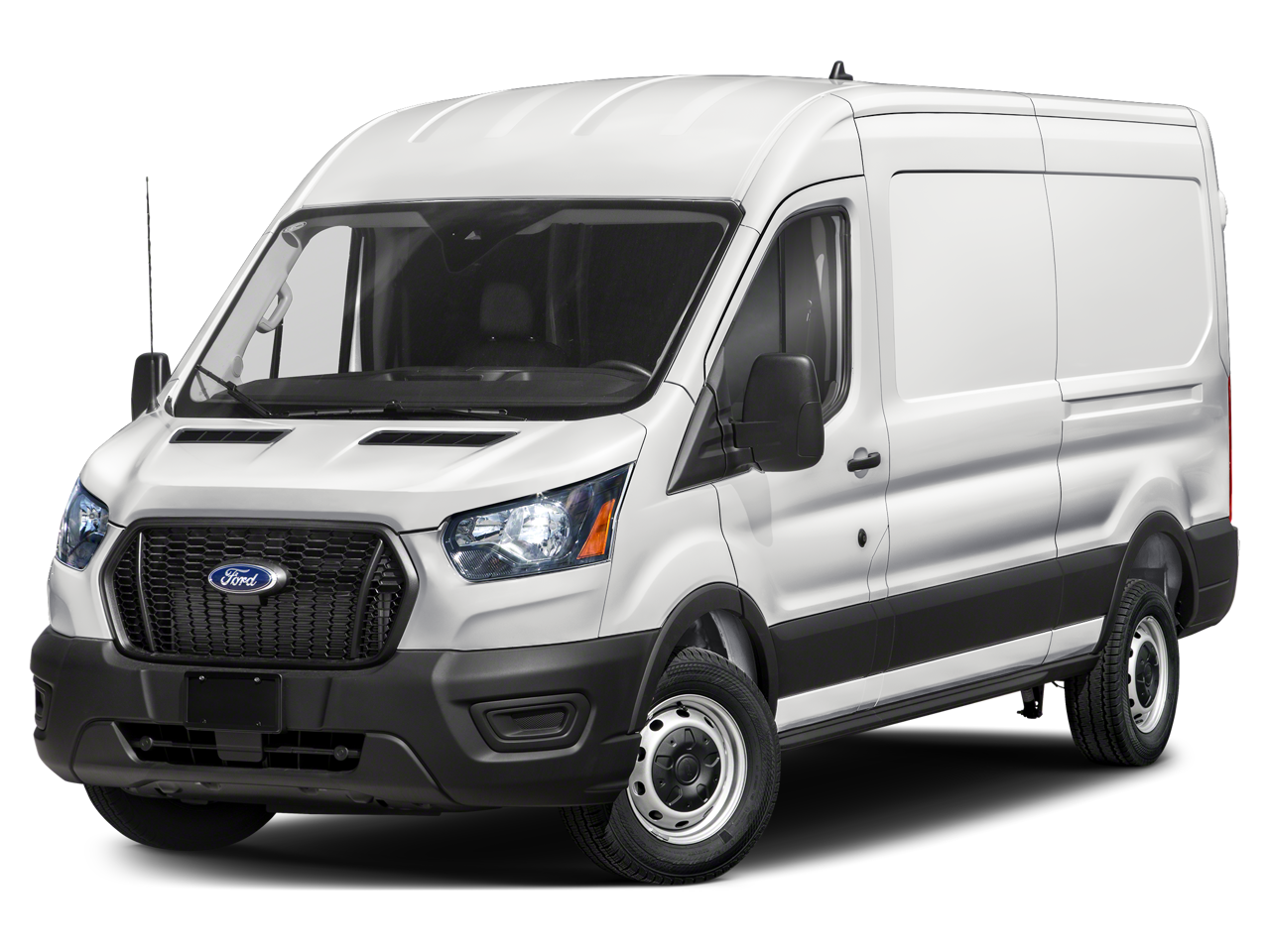

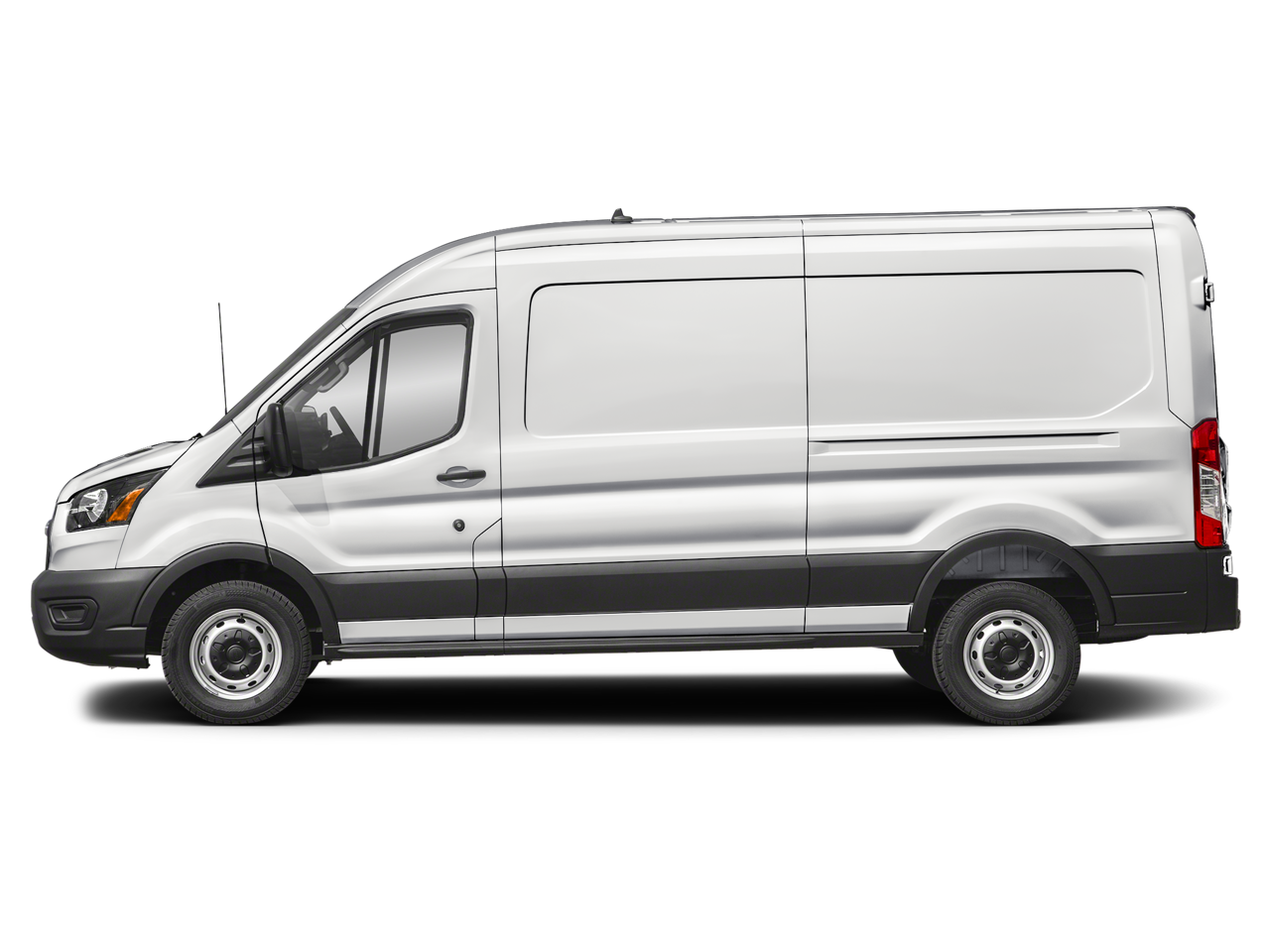

• Vehicle Name: Ford Transit Cargo Van
• Suspension
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Tires
• Front Tire Size: LT235/65SR16
• Rear Tire Size: LT235/65SR16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Spare Tire Size: Full-Size
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 480
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4800
• Maximum Trailering Capacity (lbs): 4800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 480
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4800
• Vehicle
• Rear Door Type: Split Swing-Out
• Weight Information
• Base Curb Weight (lbs): 5522
• Curb Weight - Front (lbs): 3247
• Curb Weight - Rear (lbs): 2295
• Gross Axle Wt Rating - Front (lbs): 4630
• Gross Axle Wt Rating - Rear (lbs): 5750
• Gross Combined Wt Rating (lbs): 10800
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 X 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): Full-Size
